Block and Tackle Calculator

Calculate the mechanical advantage and lifting force for pulley systems: see how much effort it takes to hoist a heavy load with different block and tackle setups.

1System Configuration

Calculation Results
Mechanical Advantage
4:1
Required Force
250kg
LIVE DIAGRAM (4:1)

Visual representation of 4 supporting rope segments.

Standard Pulley Configurations

What is a block and tackle?

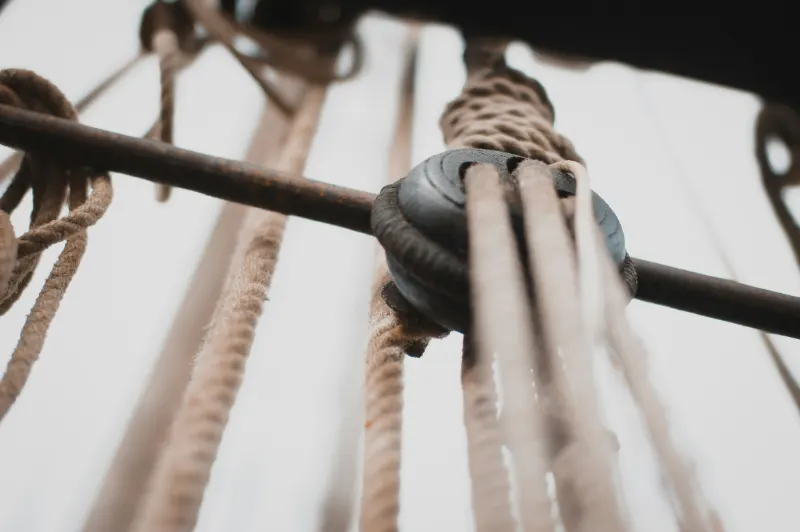

A block and tackle is a mechanical system of two or more pulleys (the “blocks”) with a rope or cable (the “tackle”) threaded between them. A fixed block is anchored to a beam or ceiling and a moving block is attached to the load, so one person can lift heavy weights with much less effort.

The key idea is mechanical advantage (MA). Spreading the load across several rope segments means the operator pulls further but with much less force.

The trade-off

The force drops by the mechanical advantage, but the length of rope you pull goes up by the same factor. With a 4:1 system, lifting a load 1 m means pulling 4 m of rope.

Pros & cons of pulley systems

✓ Advantages

  • Multiplies human power: one person can lift loads of hundreds or thousands of kilograms
  • No external power: works without electricity or fuel
  • Portability: light and quick to rig on site

✕ Disadvantages

  • Distance penalty: you pull a lot of rope for a small lift
  • Friction losses: real systems are never 100% efficient
  • Anchor dependency: the overhead anchor must hold the whole load

How does this calculator work?

  • 1. Enter the load: the total weight of the object in kilograms.
  • 2. Choose the setup: the number of rope segments supporting the moving block.
  • 3. Read the force: the pulling force needed to balance the load.

Formula used

MA = Number of Supporting Rope Segments Force = Load Weight ÷ MA

This theoretical formula assumes 100% efficiency. Real-world systems need a bit more force to overcome friction in the sheaves and rope stiffness.

Calculation example

Scenario: Hoisting a 1,000 kg engine block using 4 rope segments (2 double pulleys).

Step 1: MA = 4

Step 2: 1,000 ÷ 4

Final result: 250 kg of pulling force (in theory).

Safety: never stand under a suspended load, and make sure the rope, blocks and anchor are rated for the full load plus a safety margin.

Frequently asked questions

Does adding pulleys always reduce effort?

In theory each extra supporting segment adds one to the MA. In practice friction builds up with every sheave, so returns diminish beyond about 4–6 segments.

How far do I have to pull the rope?

Rope pulled = lift height × MA. Lifting 2 m with a 6:1 system means pulling 12 m of rope.
